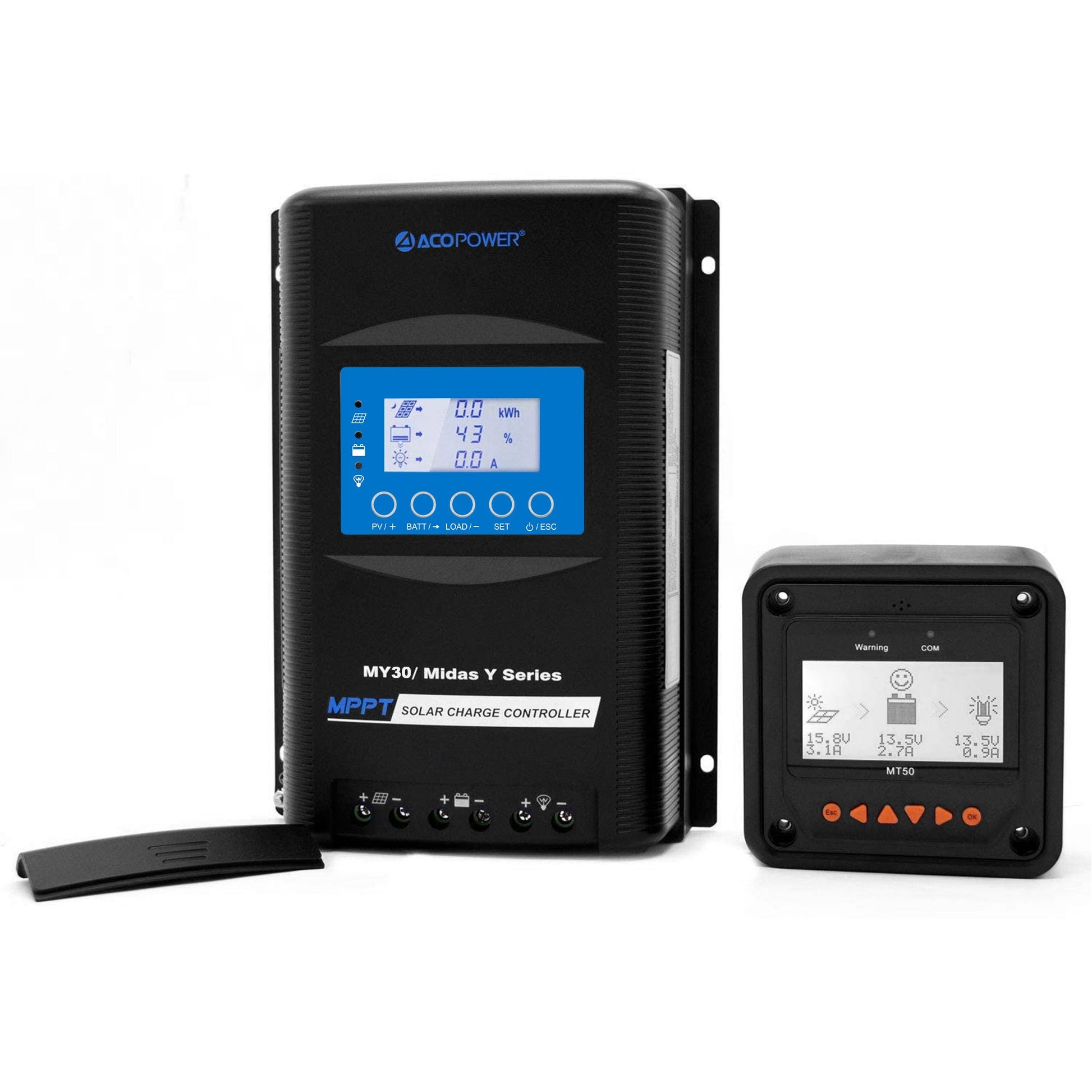

Midas 30 Amp MPPT Solar Charge Controller with MT-50

Description

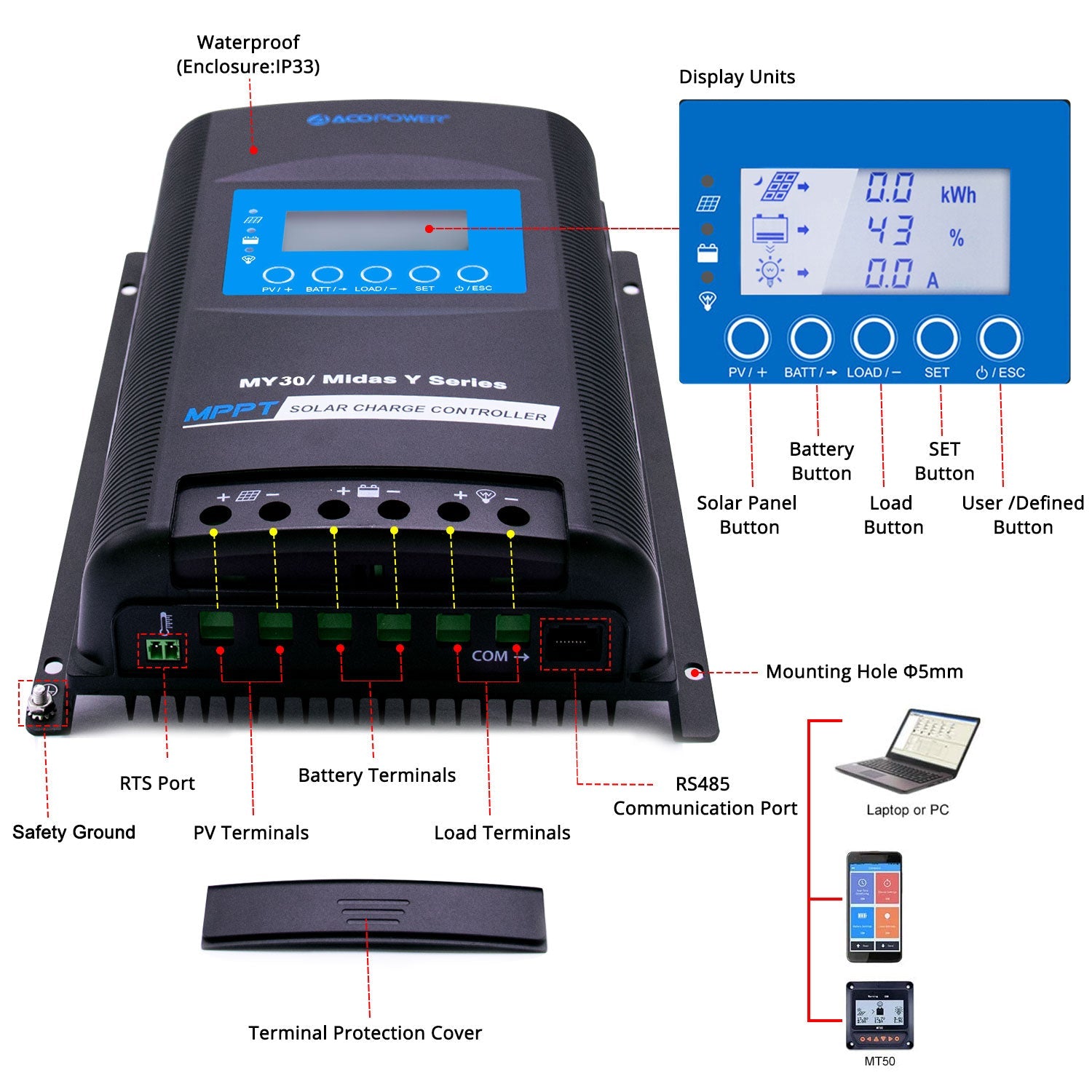

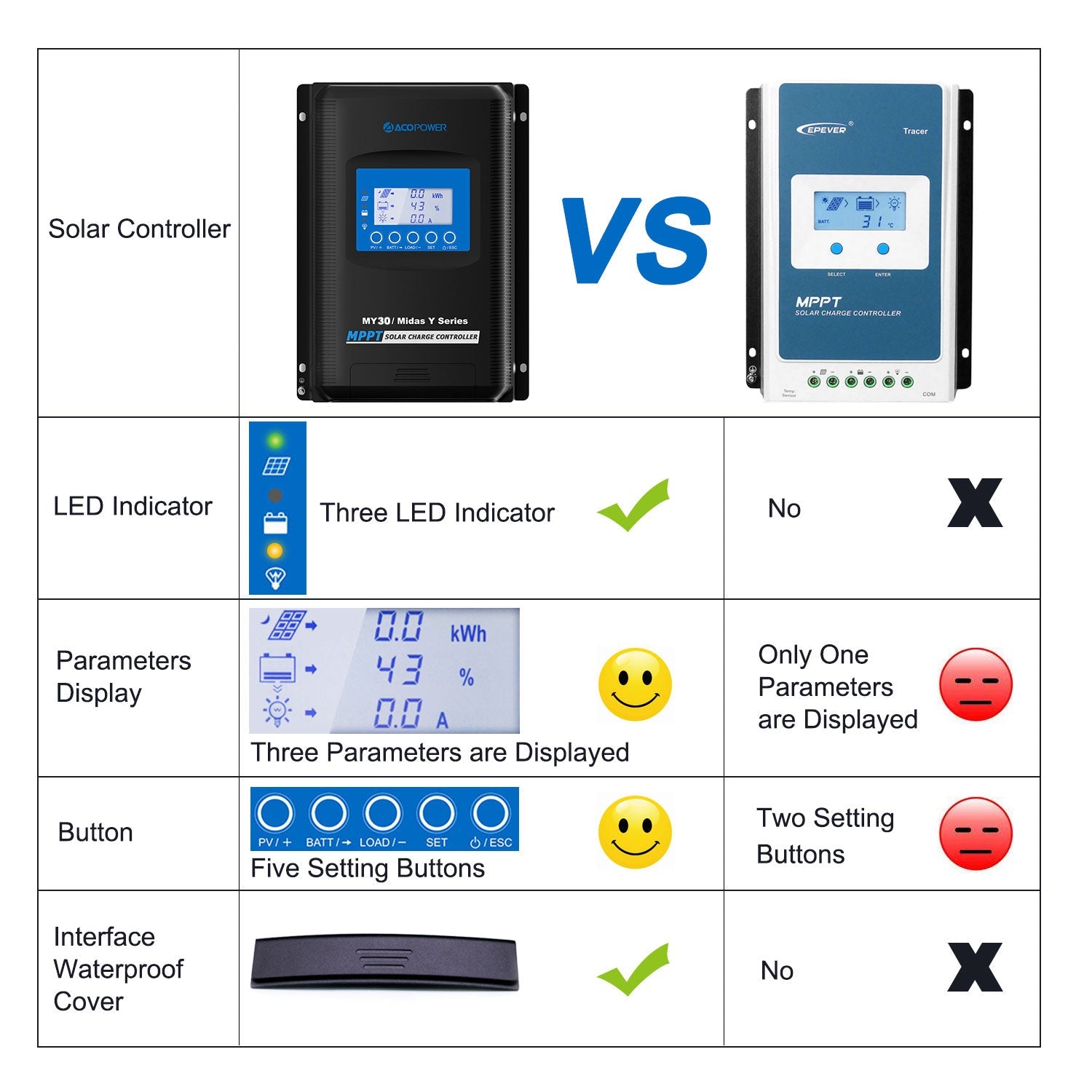

The ACOPOWER 30A MPPT Solar Charge Controller boasts multiple advantages to other charge controllers in the market. From our 3 light LED indicator, multiple parameter display screen, 5 setting button interface, waterproof interface cover and included remote monitor system, you can be assured best in class performance and innovative features compared to others.

30A Charge Controller

• Automatically detect 12V or 24V DC system voltages using innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98% - accurately recognizing and tracking of multiple power point; 3-stage charge with PWM output

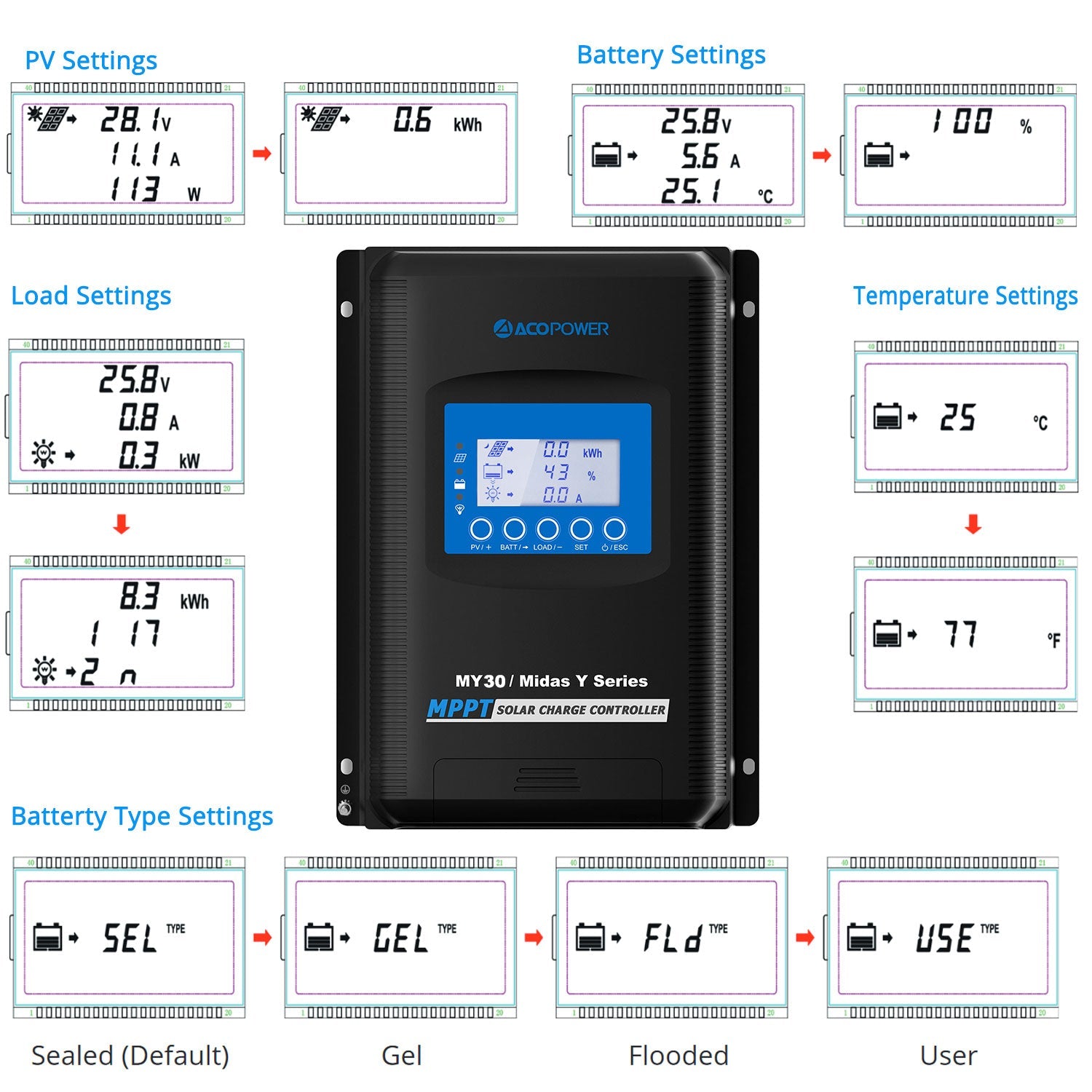

• Easy To Monitor and Operate - The Multi-function LCD screen displays system information intuitively; User programmable for battery types, load control etc, via PC software or remote meter MT-50
• Battery voltage range: 8V~32V
• Charging Power and Current Limitation Function
• PV short circuit / PV reverse polarity /Battery over voltage /Battery over discharge / Battery reverse polarity / Load overload protection
• 100V PV input allows more panels to be connected in a series
• Works with Sealed(default), Flooded and Gel type Batteries

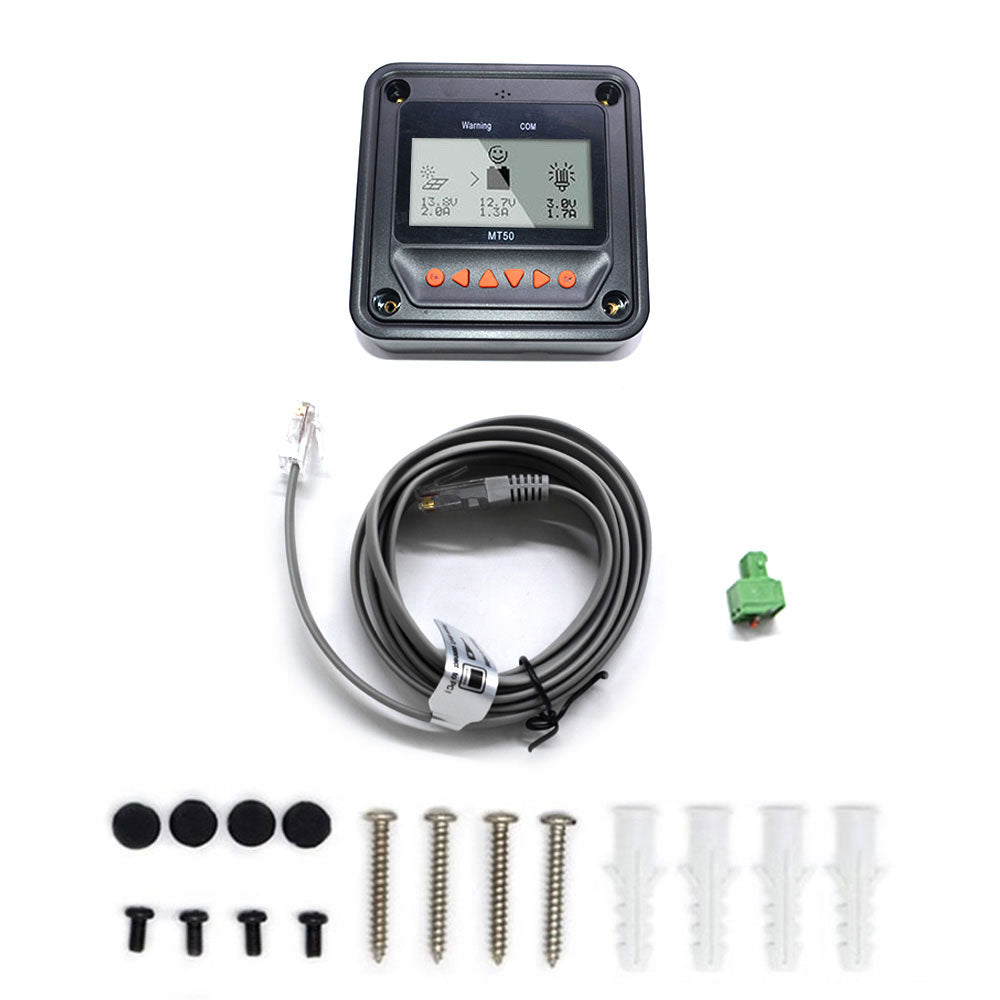

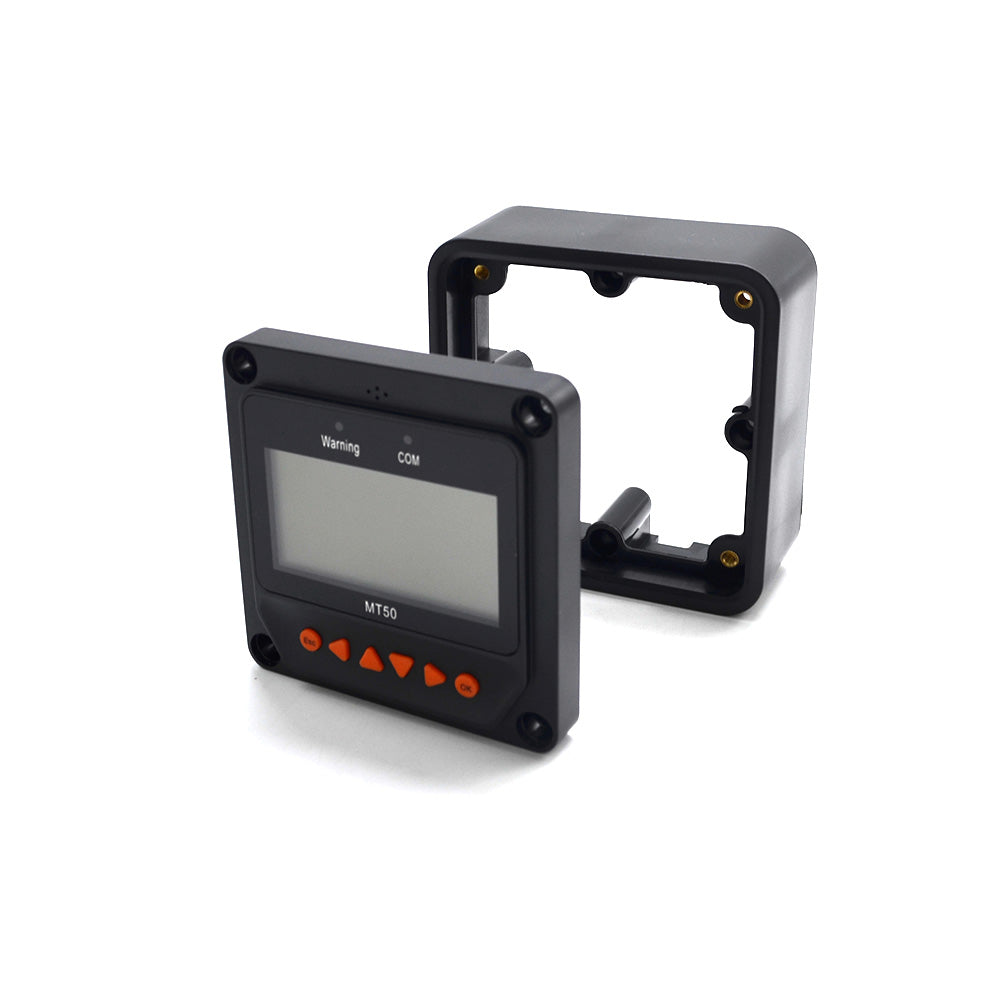

Remote Meter MT-50

• With the included MT-50 Remote Meter, you will always know the status of your charge controller and easily trouble shoot via the digital display screen
• Large-screen multifunction LCD displays pertinent operational data and operational system status of your solar kit
• Real-time energy statistics recording - Monitor your solar system in real-time

Package List

• 1 x 30A MPPT Solar Charge Controller
• 1 x MT-50 Remote Meter
• 2 x User Manual

If you have any questions regarding this product, please call us at 1 (626) 838-5511 or email support@acopower.com.
